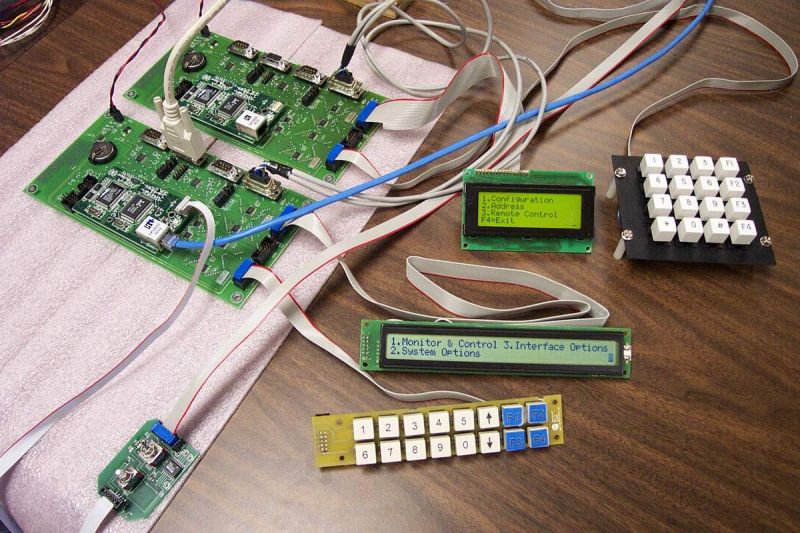

The custom circuit cards shown control a uni/bidirectional RF switch matrix. This circuit card has RS-485, RS-232, LCD, Keypad, Ethernet, bit shift port and one general I/O port. These cards are connected together so each can run the switch matrix, one being a remote controller, which may or may not be at the same location as the main controller.

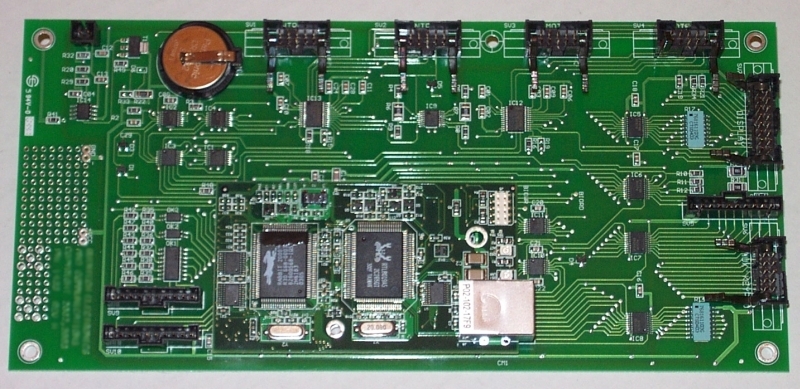

Custom circuit card designed to control an RF switch matrix

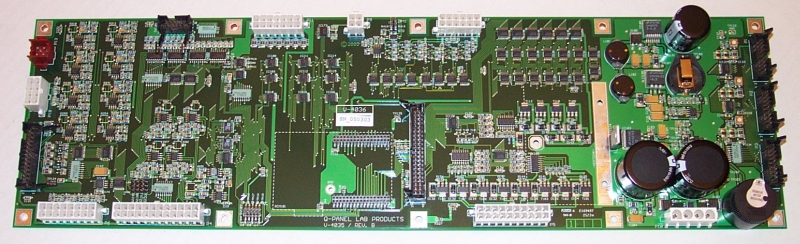

Custom circuit card designed to control an advanced weathering tester. Shown without the rabbit core mown without the rabbit core module.
