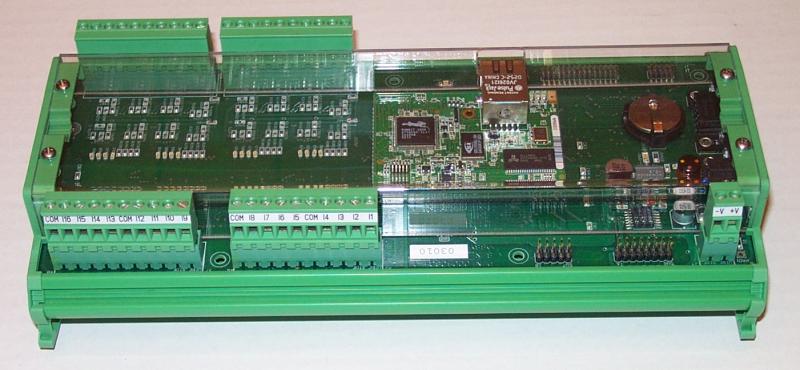

P/N: 101-00091
|
Single Board Computer using Z-World RCM3000 -- RCM3300 Core Module
16 DC optically coupled inputs that are bi-polar
16 DC optically coupled power FETs (capable of 2 Amperes)
RS232 or RS485 Serial Data Ports (software selectable)
RS232 or RS485 Serial Data
Keypad Port
LCD Display Port
Programming Port
Input Power: 9 - 40 V DC @ 0.250 A + Load
LED status on all inputs and outputs; Processor Status
Output Enable Status
Output enable / disable (set-able in software)
Mating screw / pin headers included
"C" and / or Assembly Functions to Speed Development.
Shown with Din Rail mount and Cover.
Available as:
Bare Card
Card Mounted in Phoenix Green Track
DIN Rail Mount
See-Through Cover
|

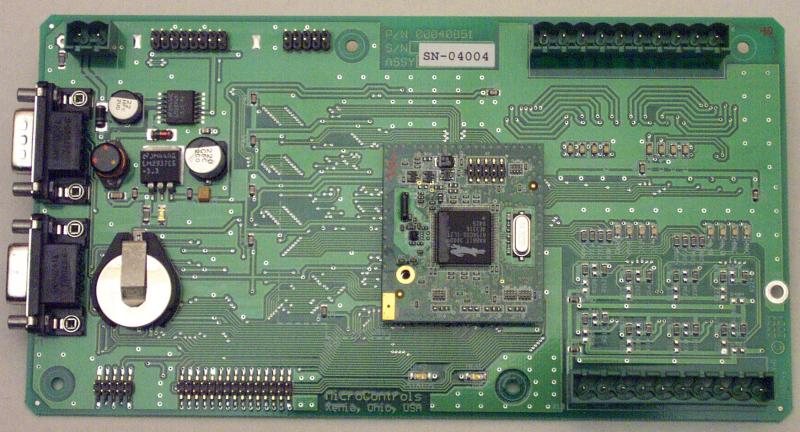

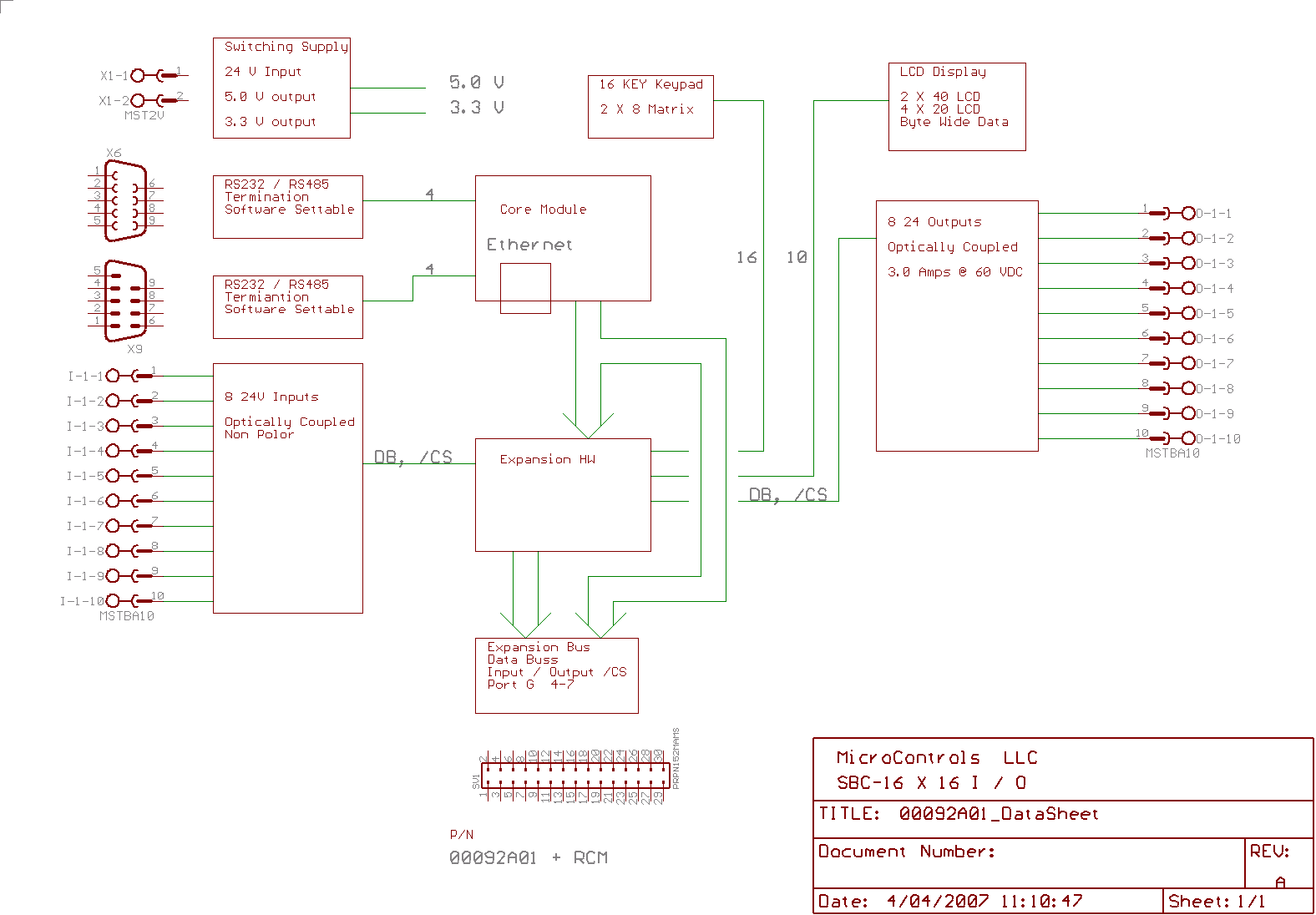

P/N: 101-00092
|
Single Board Computer using Z-World RCM3000 -- RCM3300 Core Module
Same features as P/N 00091 but with a Smaller Footprint
8 DC optically coupled inputs that are bi-polar
8 DC optically coupled Power FETs (capable of 2 Amperes)
RS232 or RS485 Serial Data Ports (software selectable)
RS232 or RS485 Serial Data
Keypad Port
LCD Display Port
Programming Port
Input Power: 9 - 40 V DC @ 0.250 A + Load
LED status on all inputs and outputs; Processor Status
Output Enable Status
Output enable / disable (set-able in software)
Mating screw / pin headers included
"C" and / or Assembly Functions to Speed Development.
Shown as bare card
Available as:
Bare Card
Available as:
Bare Card
Card Mounted in Phoenix Green Track
DIN Rail Mount.
See-Through Cover
|

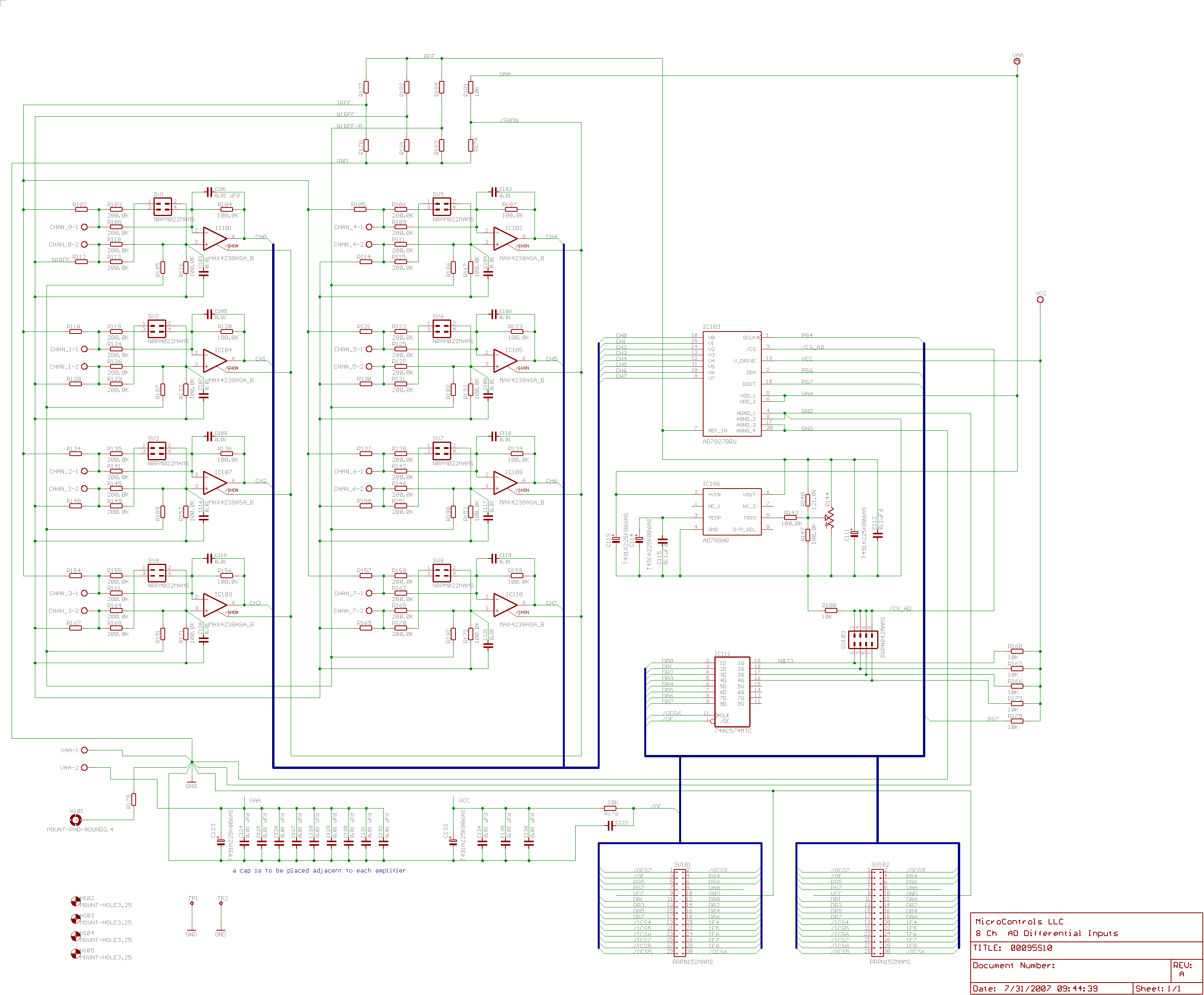

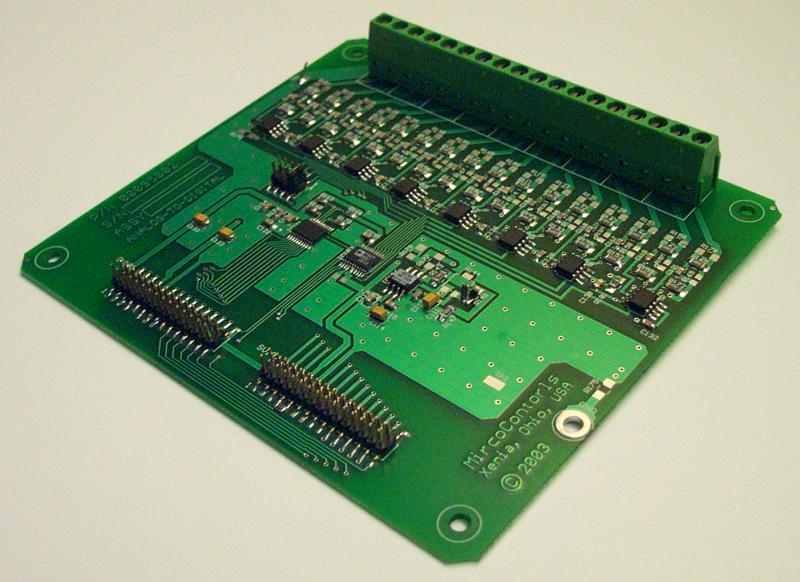

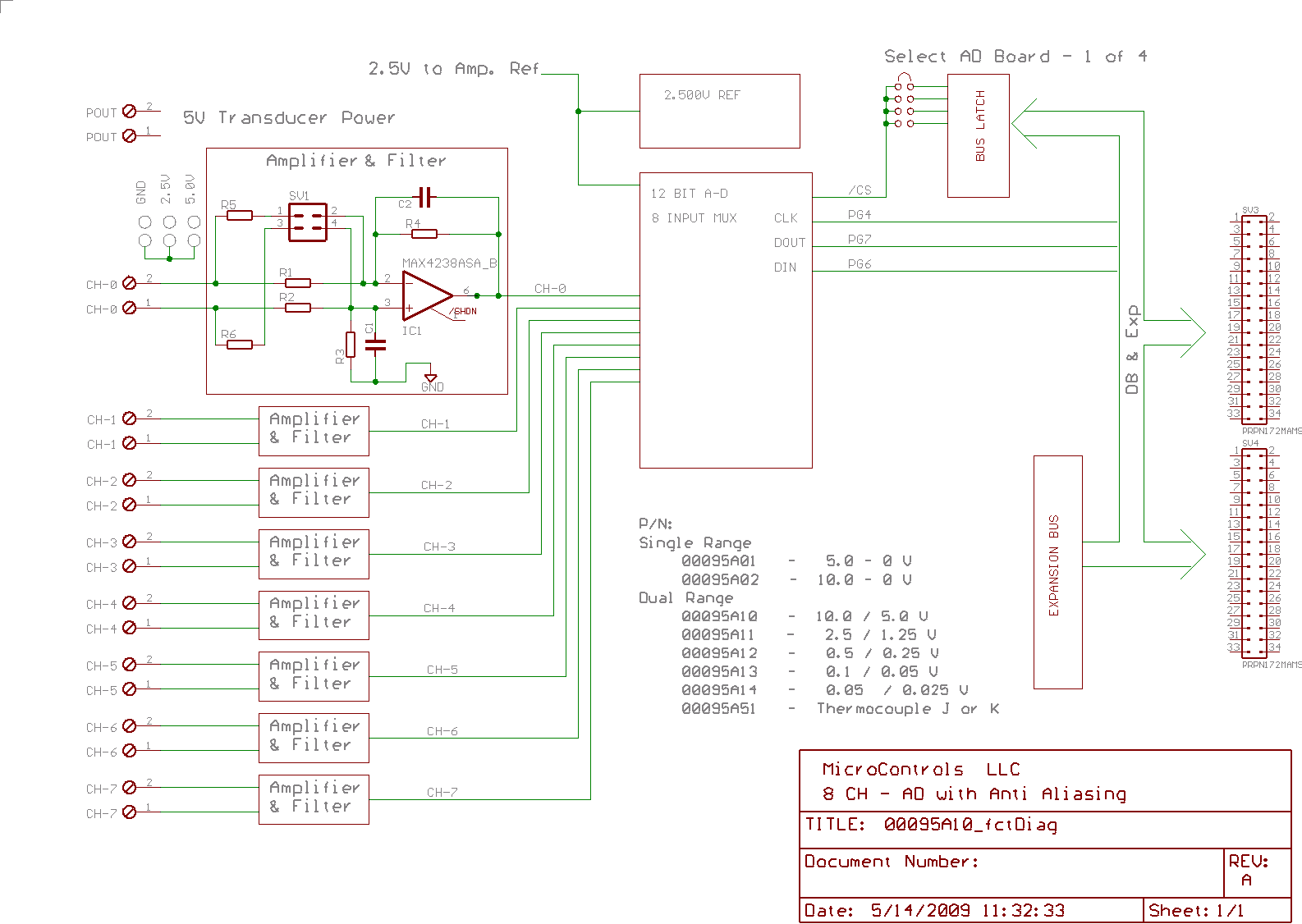

P/N: 101-00095
|
Expansion - Analog to Digital
Measure Analogs Accurately
8 Channels True Differential 12 & 1/2 bit A-D Inputs
Anti-Aliasing Filter on Each Channel
Precision 2.500 Volt reference
Signal Conditioning Input Amplifiers
0.1 uV input offset
0.001 uA input bias current
100 uSec Conversion Times / Input with Software Module
No Calibration Table Required
Applications:
Pressure transducers
Thermocouples
Almost any analog signal
Available with fixed Gains:
0 - 5 Volt (stath fixed Gains:
0 - 5 Volt (standard)
0 - 0.050 Volts (excelent for thermocouples)
-10 - 10 Volt (signal monitoring)
0 - 10 Volt
Custom gains on request
Interface:
Serial and Data bus
Serial only (for connecting to a serial port)
Includes:
Expansion Cable
|
|

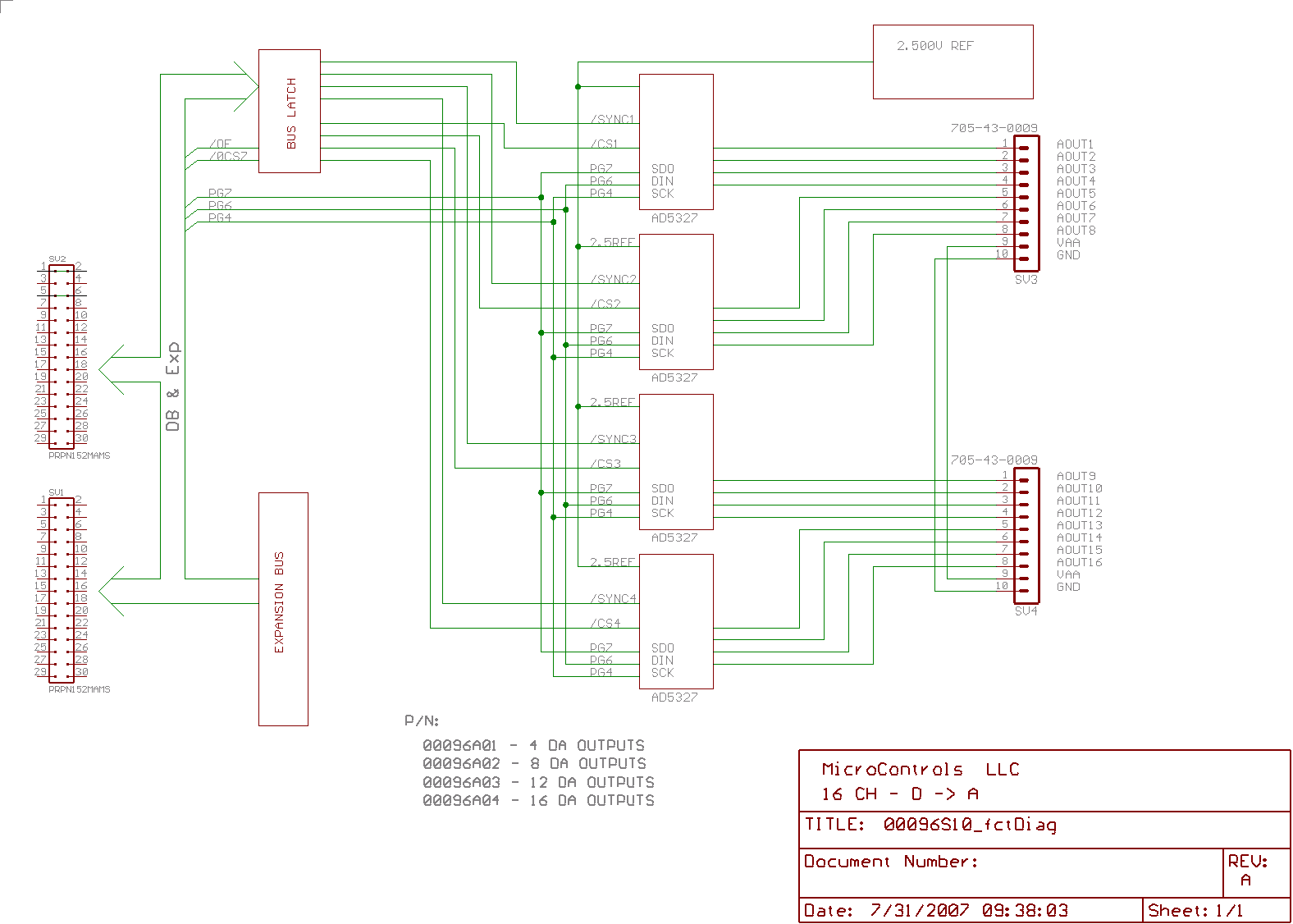

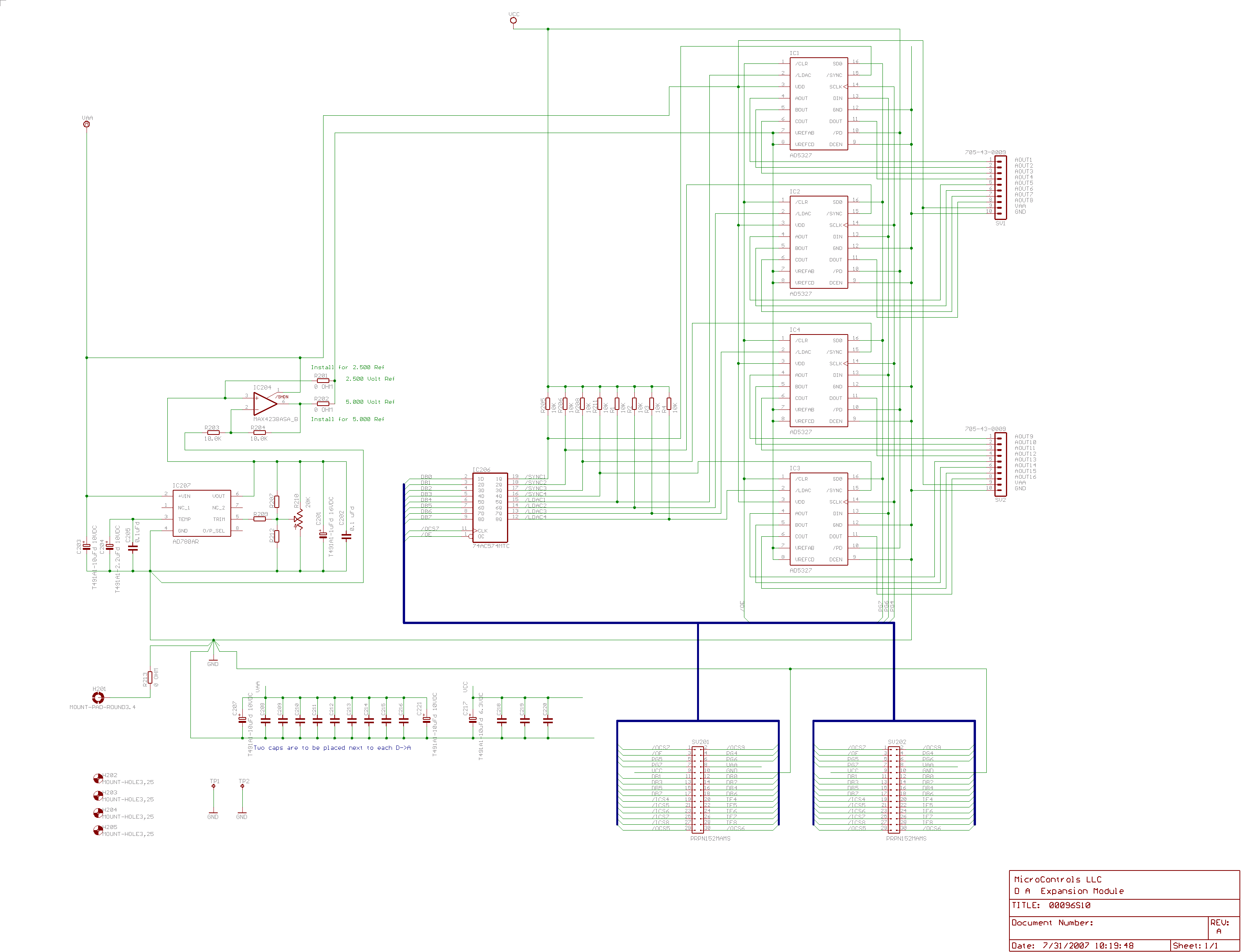

P/N: 101-00096
|
Expansion - Digital to Analog
Outputs Analogs Accurately
4, 8, 12, 16 Channels of True 12 & 1/2 bit
Precision 2.5 Volt reference
Buffer Amplifier Provided
No Calibration Table Required
Applications:
Inputs to Analog Motor Control
Available with:
0 - 5 Volt (standard)
-10 - 10 Volt (signal monindard)
-10 - 10 Volt (signal monitoring)
0 - 10 Volt
Interface:
Serial and Data bus
Serial only (for connecting to a serial port)
Includes:
Expansion Cable
|

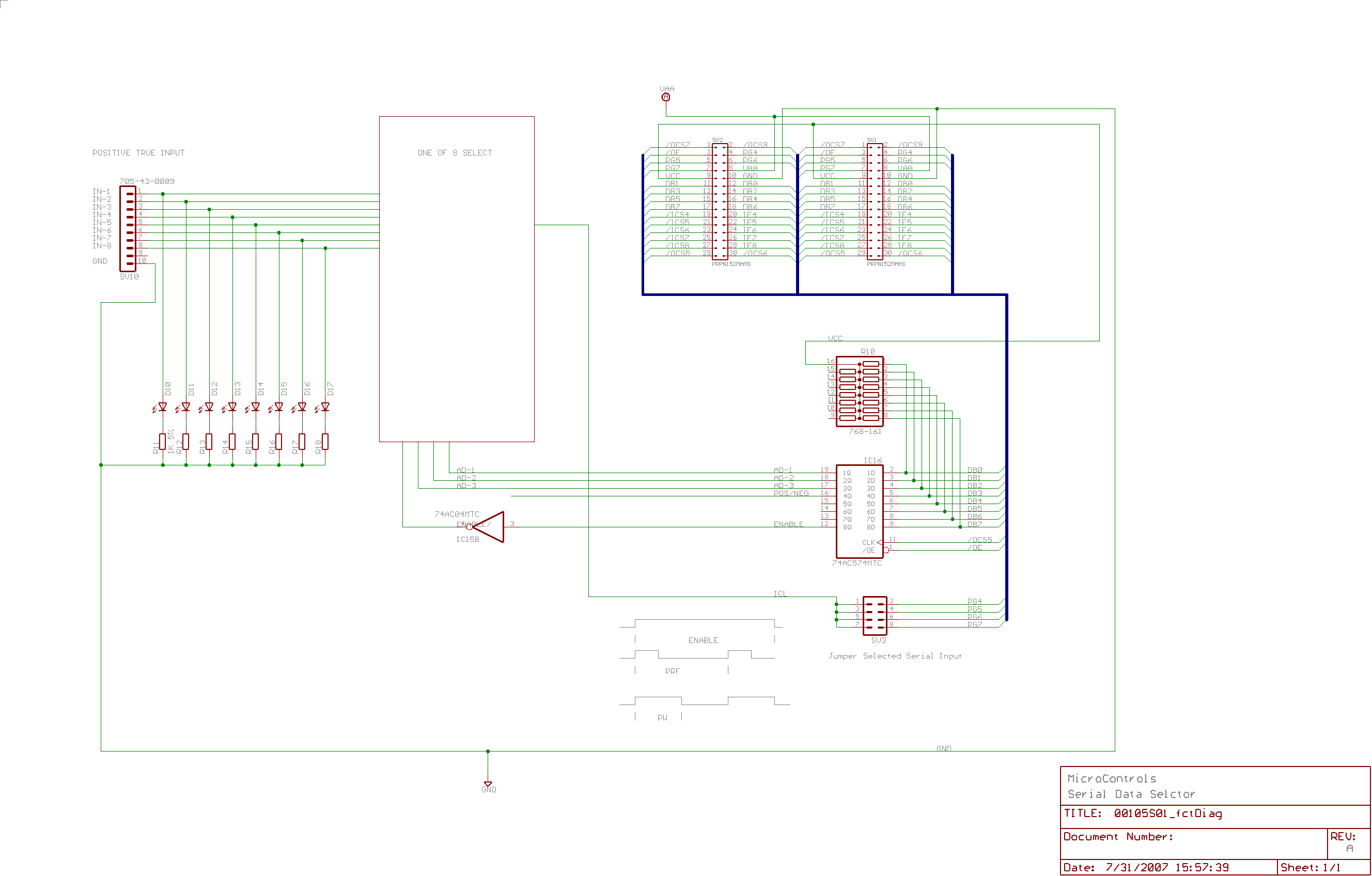

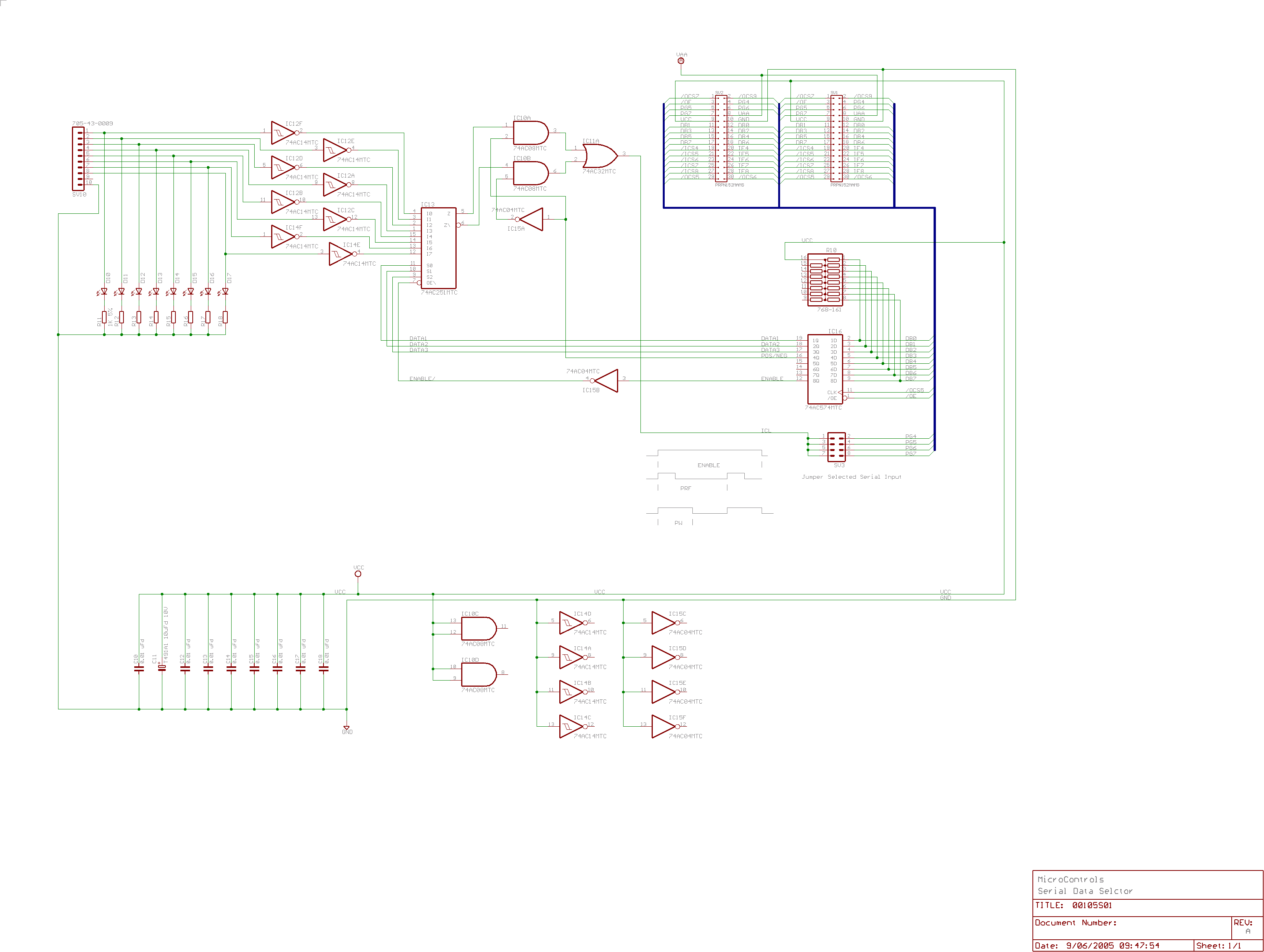

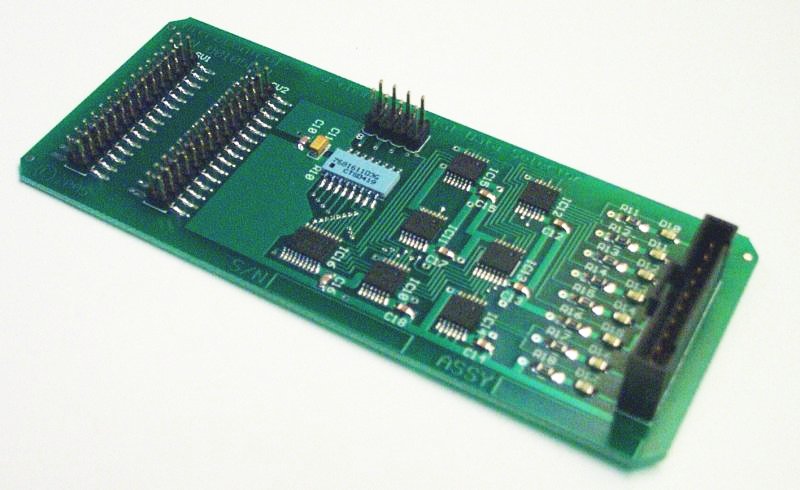

P/N: 101-00105
|
Expansion - Serial Data Selector
Measure PRF (Pulse Repetition Frequency) and PW (Pulse Width)
8 Serial Data Channels (software selectable).
3.3 Volt inputs (5 Volt tolerant)
Built-in Inverter for Negative-going Pulses (software selectable)
Software Module
PRF's to 200 KHz with RCM3000
PW's to 5 usec with RCM3000
Limited by speed of processor
Includes:
Expansion Cable
|
P/N: 101-00117
|
Expansion - 16 Channels of 24-Volt Output
16-Channel Expansion Module
Programmed so each individual bit can be either an NPN or a PNP
Outputs are optically coupled
Reverse polarity protection
Each output is capable of 0.2 Amperes at 40 Volts
Suitable for driving relays directly
Includes:
Expansion Cable
|
|
P/N: 101-00118
|
Expansion - 16 Channels of 24-Volt Input
16-Channel Input Expansion Module
Programmed so each individual bit can be either an NPN or a PNP.
Optically Coupled Inputs
Includes:
Expansion Cable
|
P/N: 101-00135
|
Expansion - 16 Channels of 5V Input / Output
16 Inputs and 16 Outputs
3.3 V (5V Tolerant) Inputs
Changed (in banks of 8) from/to NPN or PNP inputs
16 Outputs
3.3 - 7 Volts
0.2 Ampere drive
Changed (in banks of 8) from/to NPN or PNP outputs
Includes:
Expansion Cable
|
P/N: 101-00137
|
Expansion - 32 Channel of 5V Output
32 x 3.3 - 7 Volt Outputs
3.3 V (5V tolerant) Inputs
0.2 Ampere drive
Changed (in banks of 8) from/to NPN or PNP outputs
Includes:
Expansion Cable
|

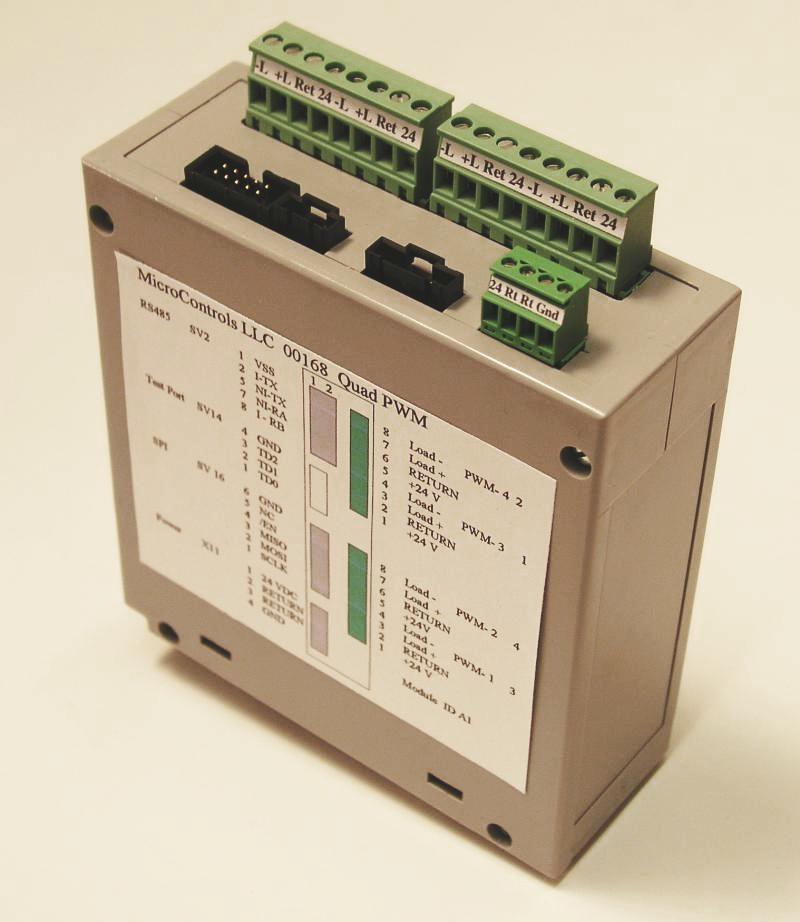

P/N: 105-00168
|
Quad 14 bit PWM
4 Independent Channels / 16 bit PWM - linear motor / clutch / brake control / servo valves.
24 - 32 Volts, availability with 1.0 A, 2.5 A, 5 A, & 10 A drive capability.
1K Hz. PRF others available.
Two 8 pin removable output terminal blocks are provided.
SPI - Serial input data required. Data is shifted on rising edge of clock
Serial Clock sck on rising edge serial data shifted in.
Serial Data MOSI Master Out Slave IN serial data
Serial Data MISO Master IN Slave Out serial data
Enable /en outputs are enabled.
Slave Select /ss sync. input data, clear buffer on power up.
Serial inputs are 3.3 - 5.0 V
one byte module (selects device), one bye device address (selects PW Channel), 2 bytes data (PW value).
RS485 Interface available.
SPI default interface.
Includes: mating plug in terminal blocks and connectors.
Din Rail Mount 4.6" X 5" X 1.75" enclosure
|

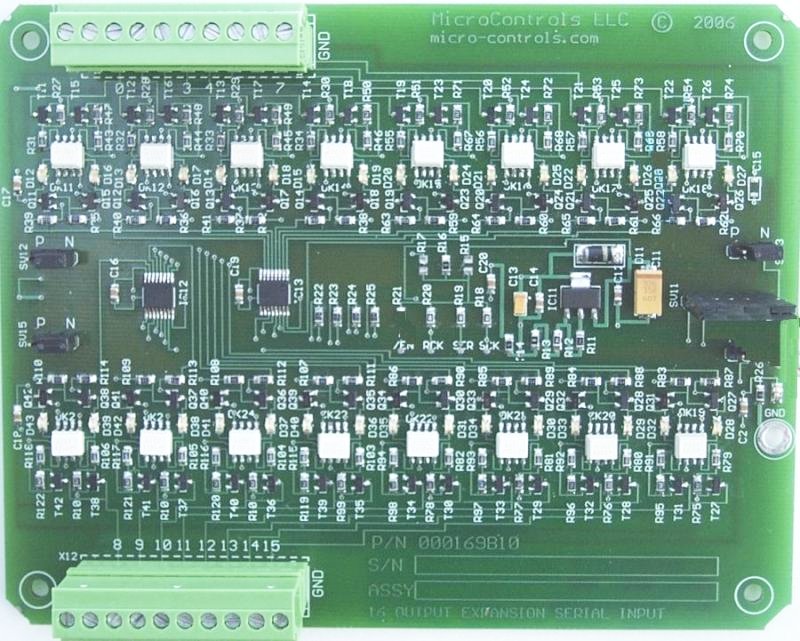

P/N: 105-00169
|
Expansion 16 24V Outputs - Serial Output from Processor
16 Discrete Outputs capable of 0.20A at 24 Volts. (50 Volt Safe).
PNP / NPN Outputs can be set via a pin jumper in banks of 4.
Two pluggable 10 pin output terminal blocks are provided.
Individual output status LEDs are provided for each discrete output.
Serial inputs are 3.3 - 24 Volt (50 Volt safe)
Serial input data required. Data is shifted on rising edge of clock
Serial Clock sck on riseing edge serial data shifted in.
Serial Data ser Master Out Slave IN serial data.
Register Clock rck 16 bits of data
/Enable /en outputs are enabled.
/Chip Select /cs selects board
|
P/N: 105-00171
|
Expansion 16 24V Inputs - Serial Input to Processor
16 Discret Inputs 24 V (50 Volt Safe
PNP / NPN inputs can be set via a pin jumper in banks of 4.
Two pluggable 10 pin input terminal blocks are provided
Individual input status LED's are provided for each discrete input.
Serial inputs are 3.3 - 24 Volt (50 volt safe)
Serial input data required. Data is shifted on rising edge of clock
Serial Clock sck on riseing edge ser data shifted in.
Serial Data ser serial data out
Register Clock rck 16 bits of data clocked to output register
/Enable /en outputs are enabled.
/Chip Select /cs selects board
|
P/N 105-00182
|
Serial Expansion Adapter
Serial Expansion Adapter Module:
Provides an easy method of connecting SBC's to serial input / output devices.
Connects to SBC's expansion bus and provides 8 serial expansion outputs.
Each output provides:
Serial Clock sck on rising edge serial data shifted in.
Serial Data MOSI Master out Slave serial data in
Serial Data MISO Master in Slave Serial data out
Enable /en outputs are enabled.
Slave Select /ss selects module, resets interfaces
Gnd
Cable Kit Available:
SBC Expansion Cable, one each - specify length
SPI - Serial Expansion Cables, eight each - specify le
|
P/N: 109-00080
|
24 V to 5V Level Converter
Not for New Systems - see 109-00127
16 Channel 24V to Open Drain Output Converter
Input 24 V DC (40 V tolerant)
Input screw terminal block
Output rated to 30 V
Output 2 x 13 protr New Systems - see 109-00127
16 Channel 24V to Open Drain Output Converter
Input 24 V DC (40 V tolerant)
Input screw terminal block
Output rated to 30 V
Output 2 x 13 protected header
Applications:
For use when 3.3V or 5.0V discrete outputs are required
|
P/N: 109-00090
|
3.3 V (5V tolerant) to 24 Level Converter
Not for New Systems - see 109-00128
16 Channel 3.3 (5V tolerant) to Open Drain Output Converter
Input 3.3 V DC. (5 V tolerant)
Input 2X13 protected header
Output rated to 40 V
Output screw terminal block
Applications:
For use when 24V discrete outputs are required
|

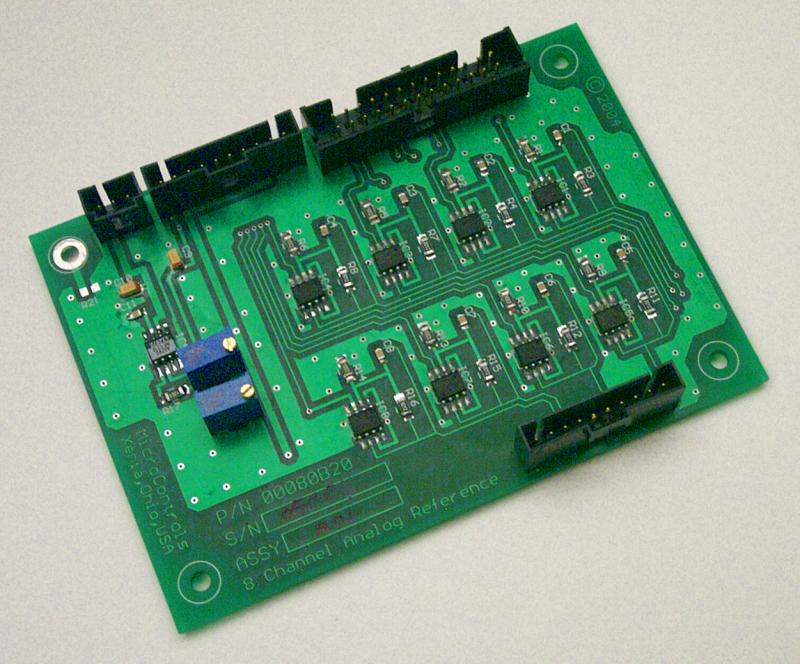

P/N: 109-00097
|

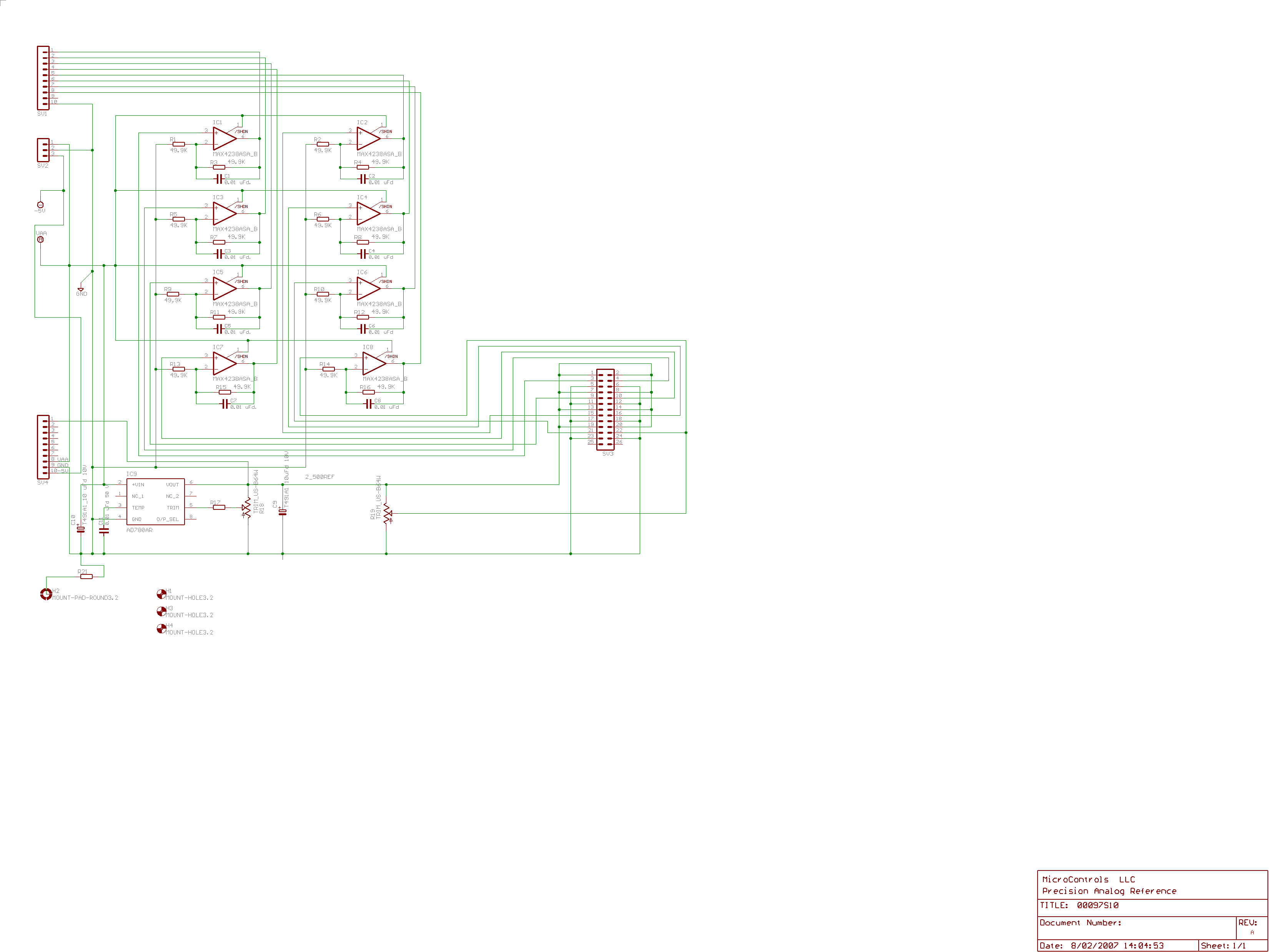

8-Channel Analog Reference
Analog Reference
8 Channels 0 - 5 V
Precision 2.5 Volt reference
Uses analog potentiometers for setting values
Buffer Amplifier provided
No calibration table required
Applications:
Analog References for test inputs
Available with:
0 - 5 Volt (standard)
Includes:
No expansion cable required
|

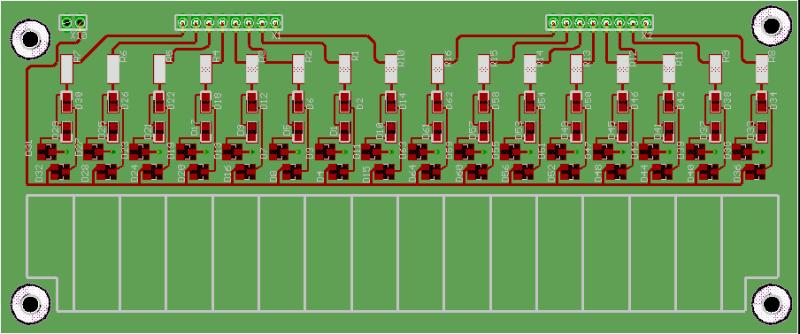

P/N: 109-00121
|

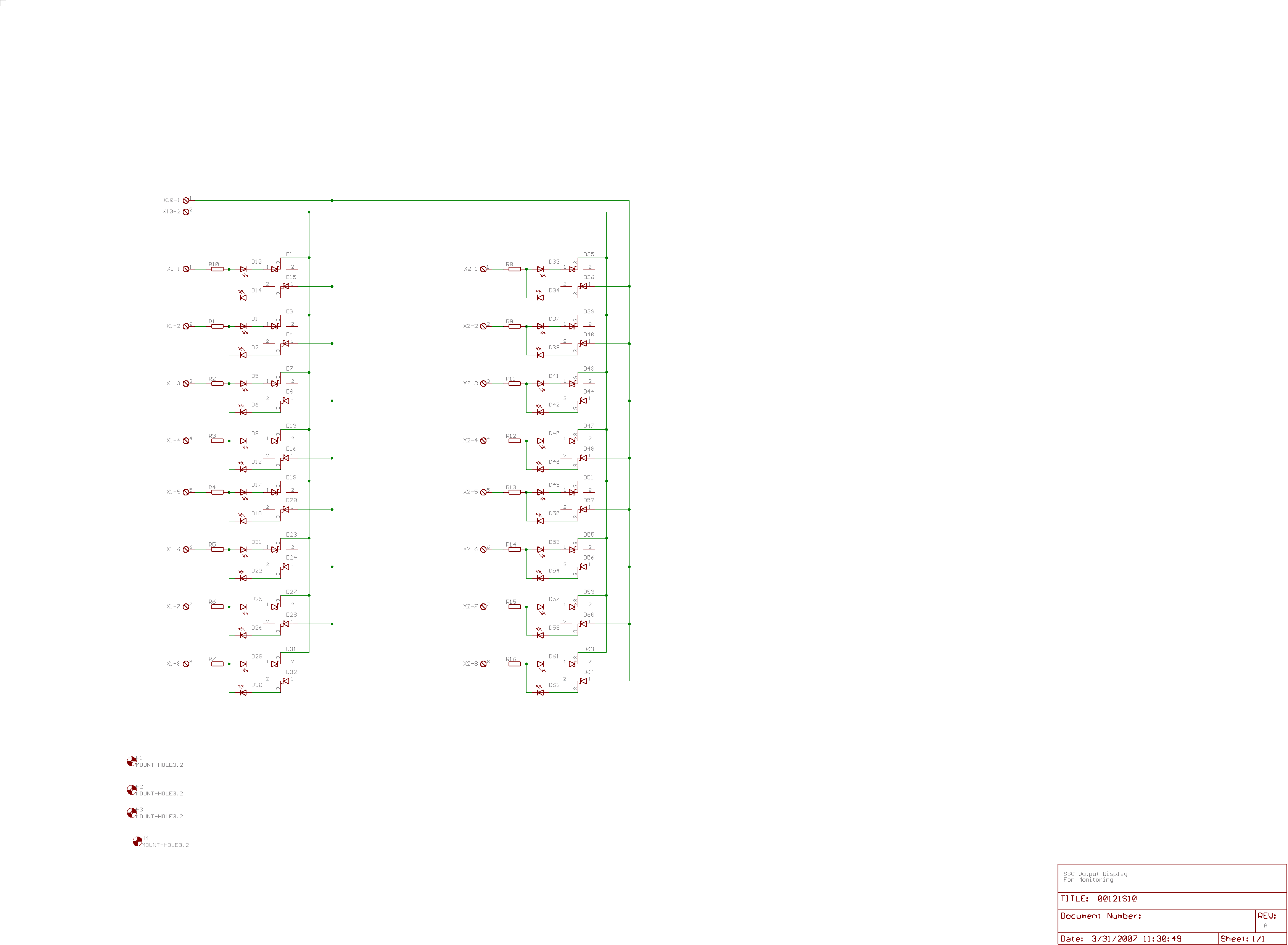

16-Channel Monitor
Monitor 16 Channels of either NPN or PNP input or output
Green LED indicates signal is High
Yellow LED indicates signal is Low
0.10" Terminal strip for inputs
0.10" Terminal strip for Power
Area on board for writing channel designation
Input 3.3 V DC to 24 V
Applications:
For monitoring outputs during SW development
|

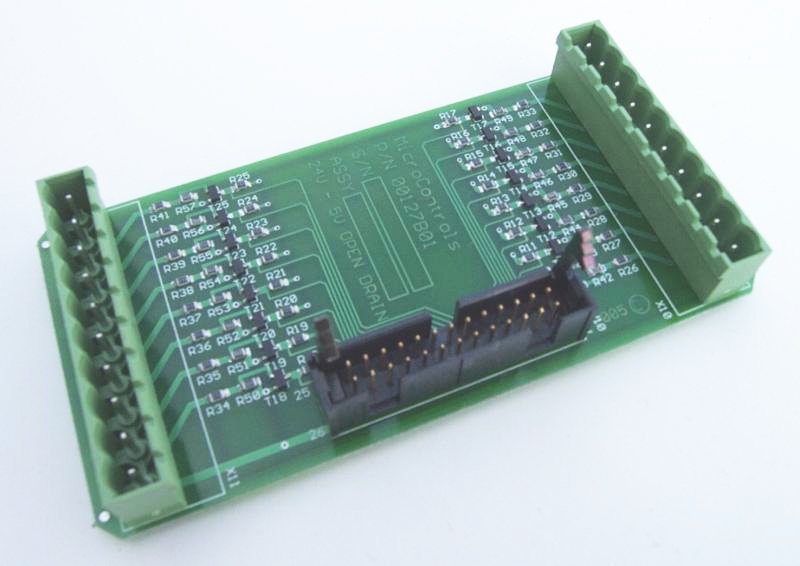

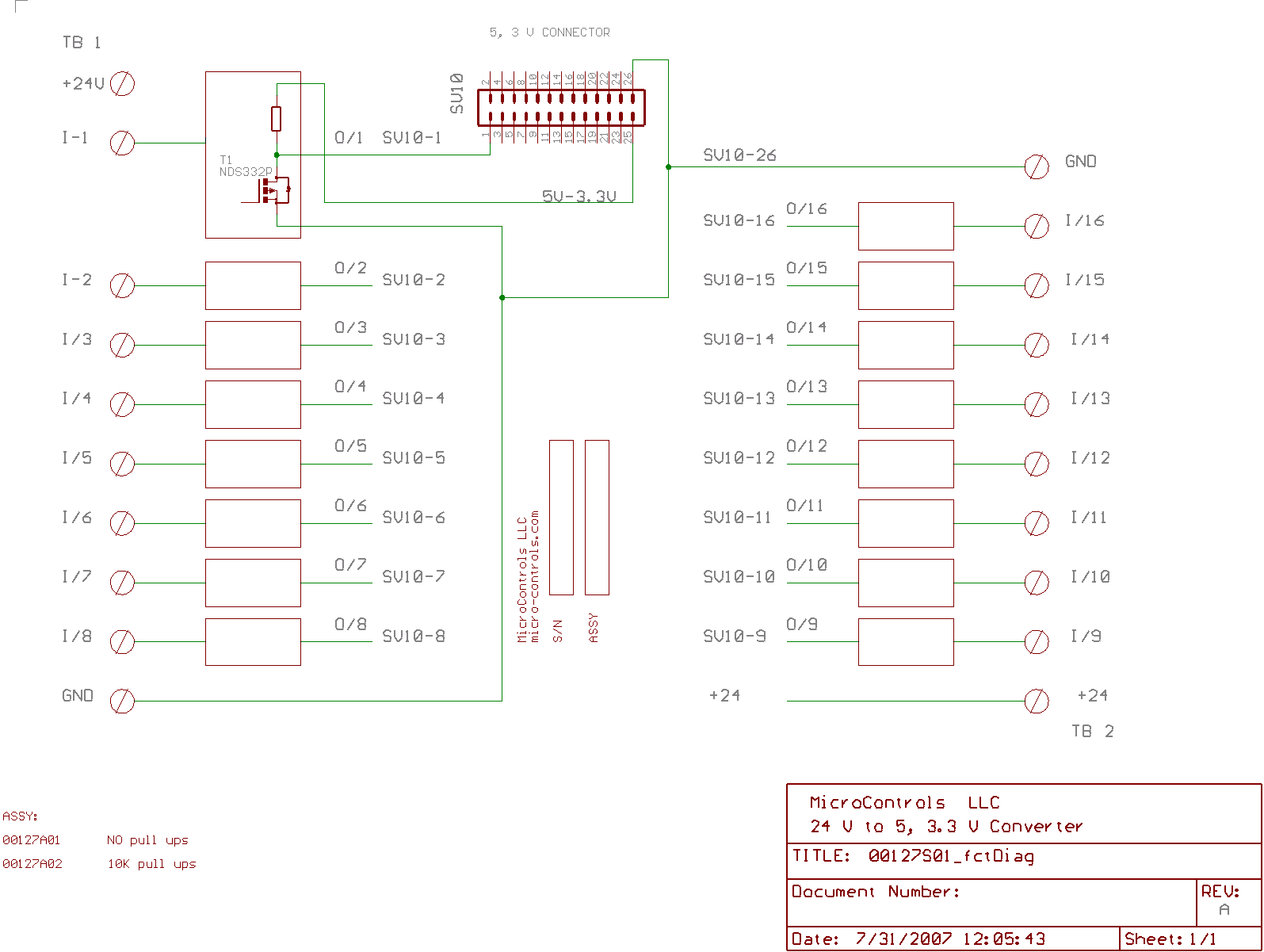

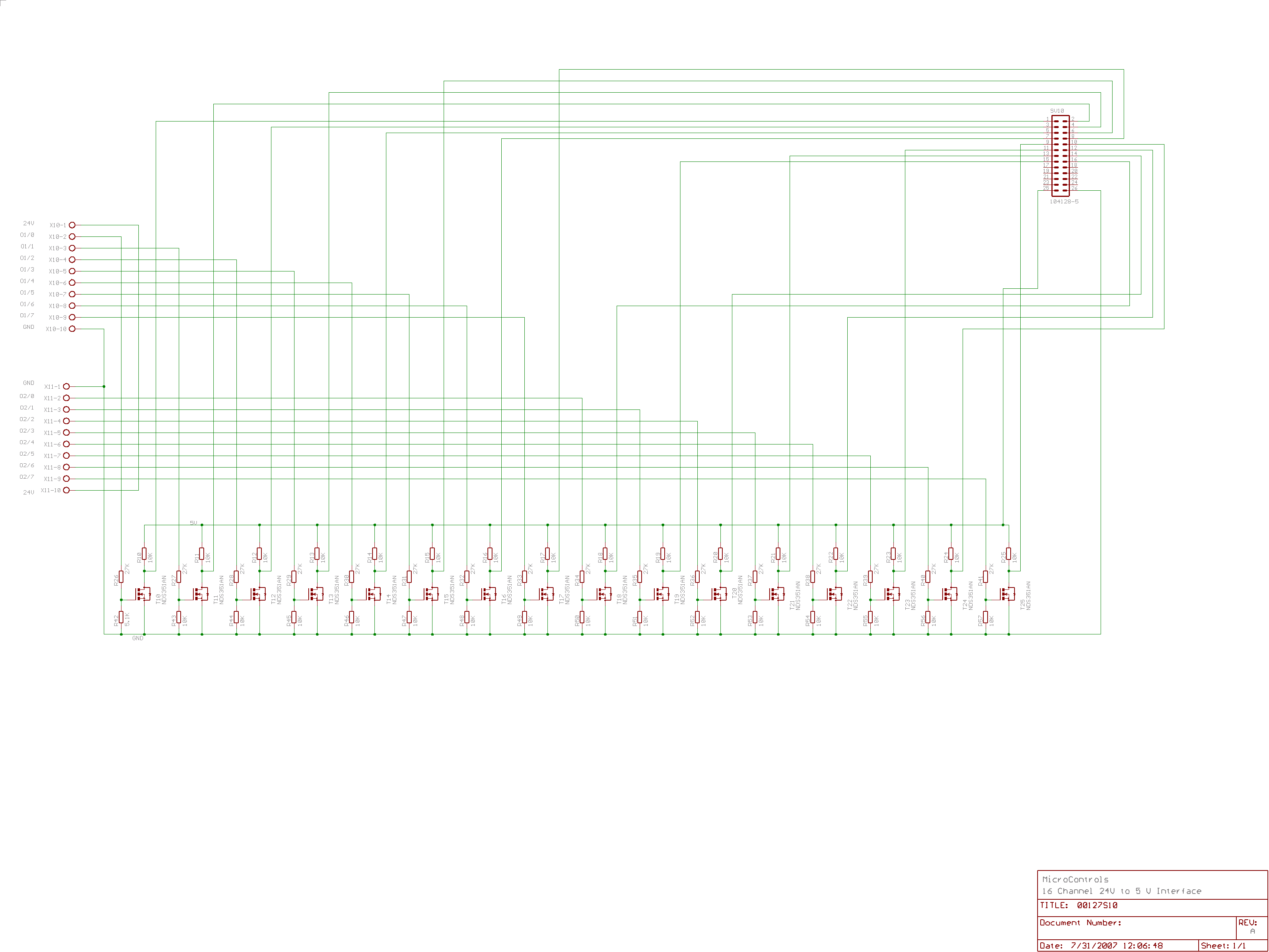

P/N: 109-00127
|
24 V to 5V Level Converter
16 Channel 24V to Open Drain Output Converter
Input 24 V DC (40 V tolerant)
Input two (1 X 10) Protected pin headers
Output rated to 30 V
Output 2 x 13 protected header
Connector Kit: 00127K01
Applications:
For use when 3.3V or 5.0V discrete outputs are required
|

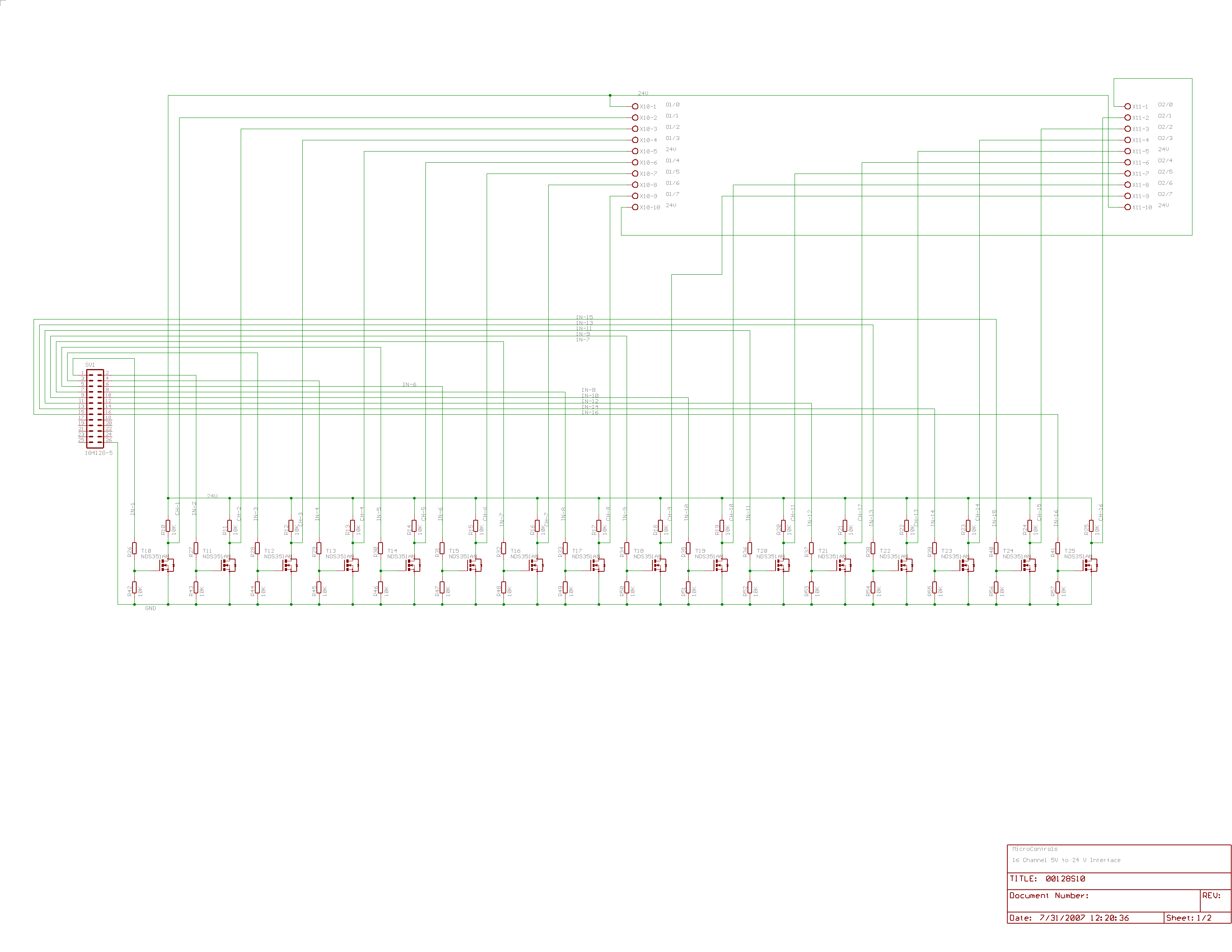

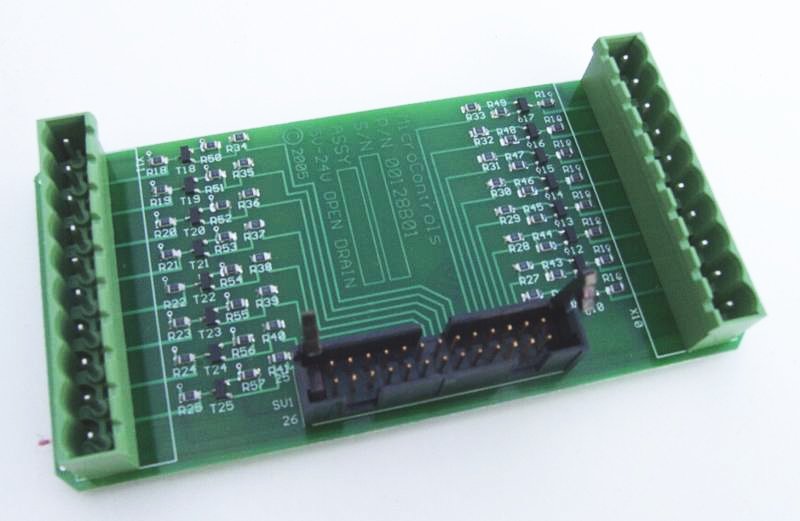

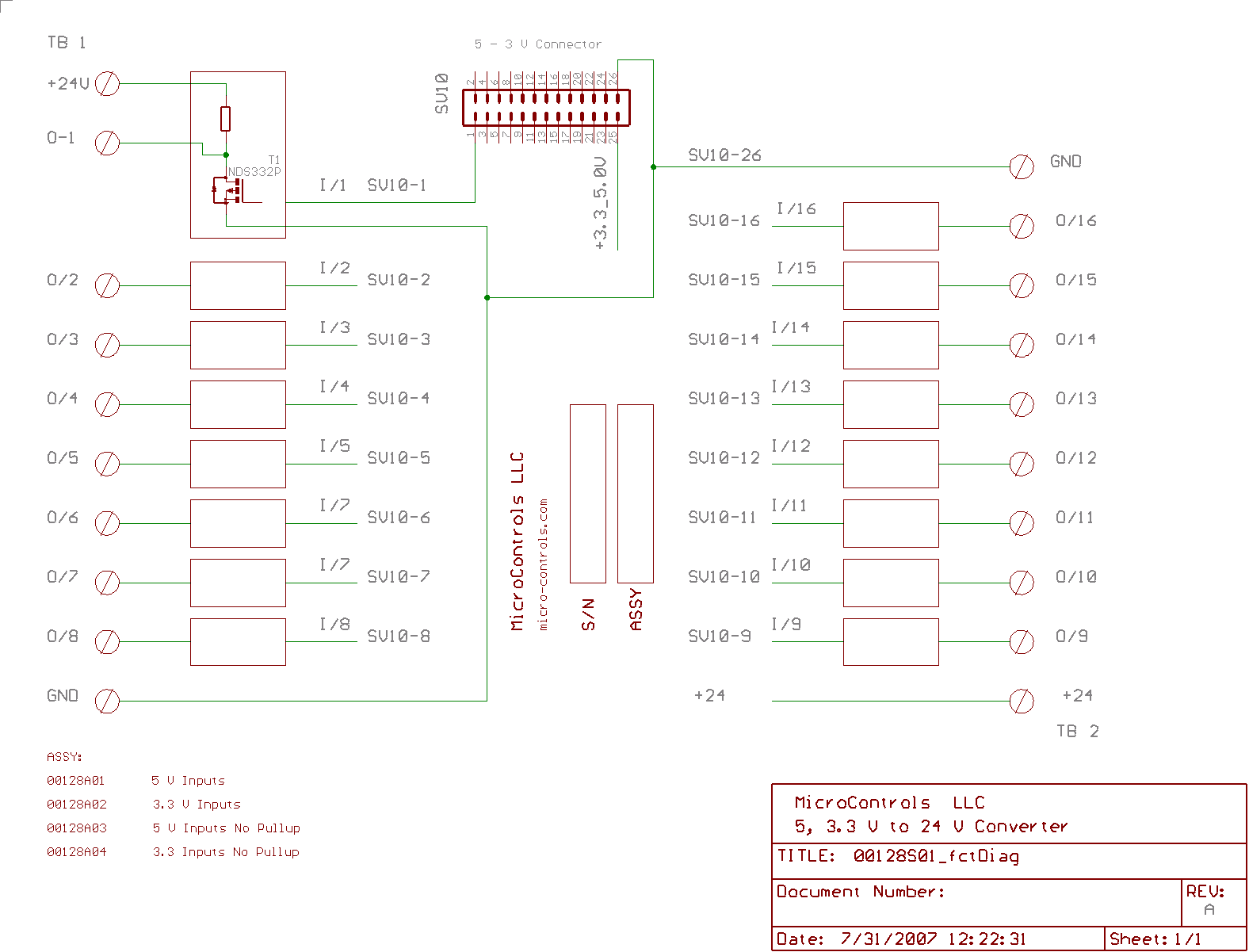

P/N: 109-00128
|
3.3 V (5V tolerant) to 24 V Level Converter
16 Channel 3.3 (5V tolerant) to Open Drain Output Converter
Input 3.3 V DC. (5 V tolerant)
Input 2X13 protected header
Output rated to 40 V 1 A, 2A total for all outputs
Output two (2 X 10 ) protected Pin Headers
Connector Kit: 00128K01
Applications:
For use when 24V discrete outputs are required
|

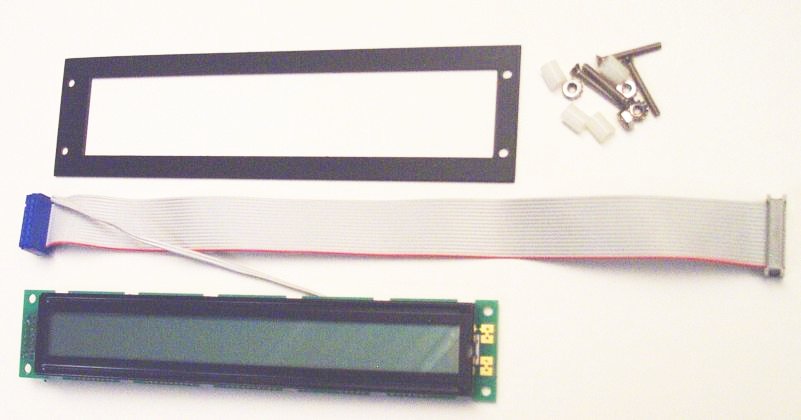

P/N: 110-00055
|

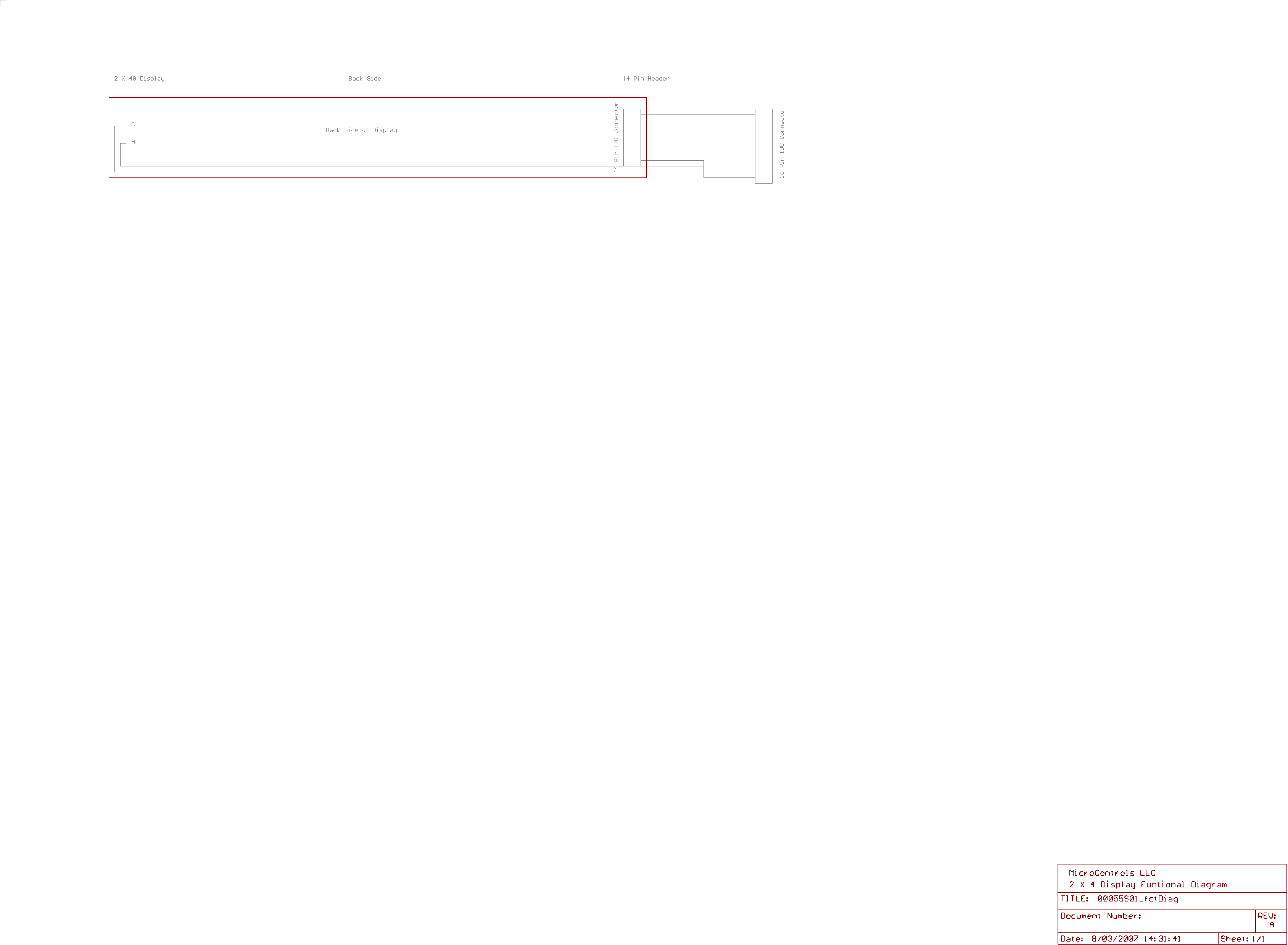

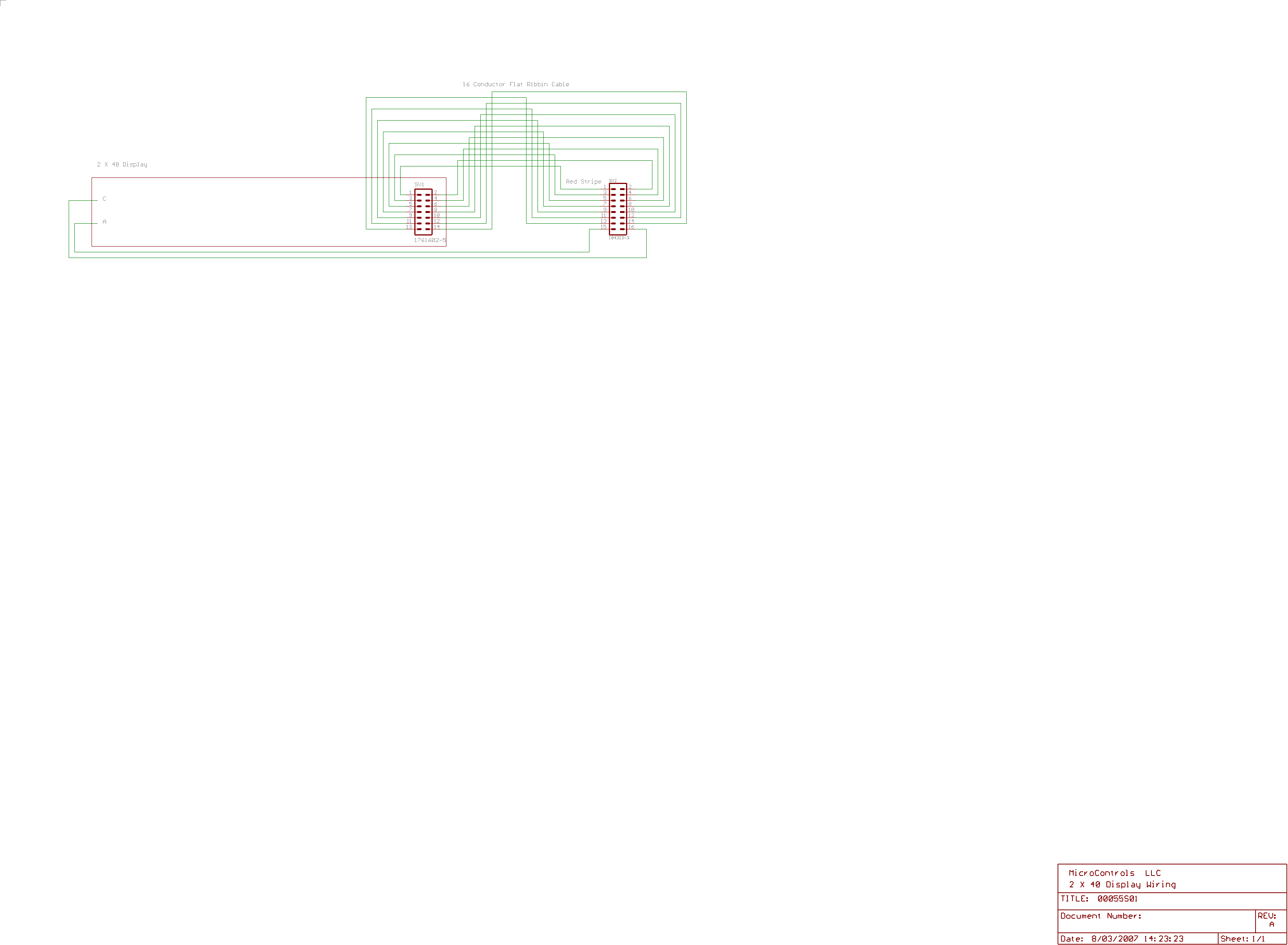

2X40 LCD Display with Backlight
2 X 40 LCD Character Display
Includes 14- or 16-pin header
Ribbon cable with 16-pin plug
Various colors available
Contrast adjustable
Available as a kit that includes:
Cable
Echelon
Membrane - Optional
Mounting Hardware
|
|
1/4 VGA Color LCD Touchscreen
Reach Technology
Serial LCD Touchscreen for Embedded Systems
1/4 VGA Color LCD Touchscreen
Serial Interface
24 VDC Power
Includes:
Echelon
Gasket
Connectors
Reach Technologies
|

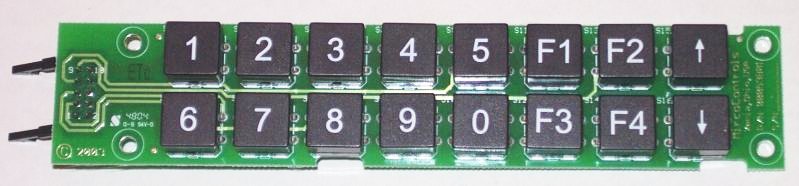

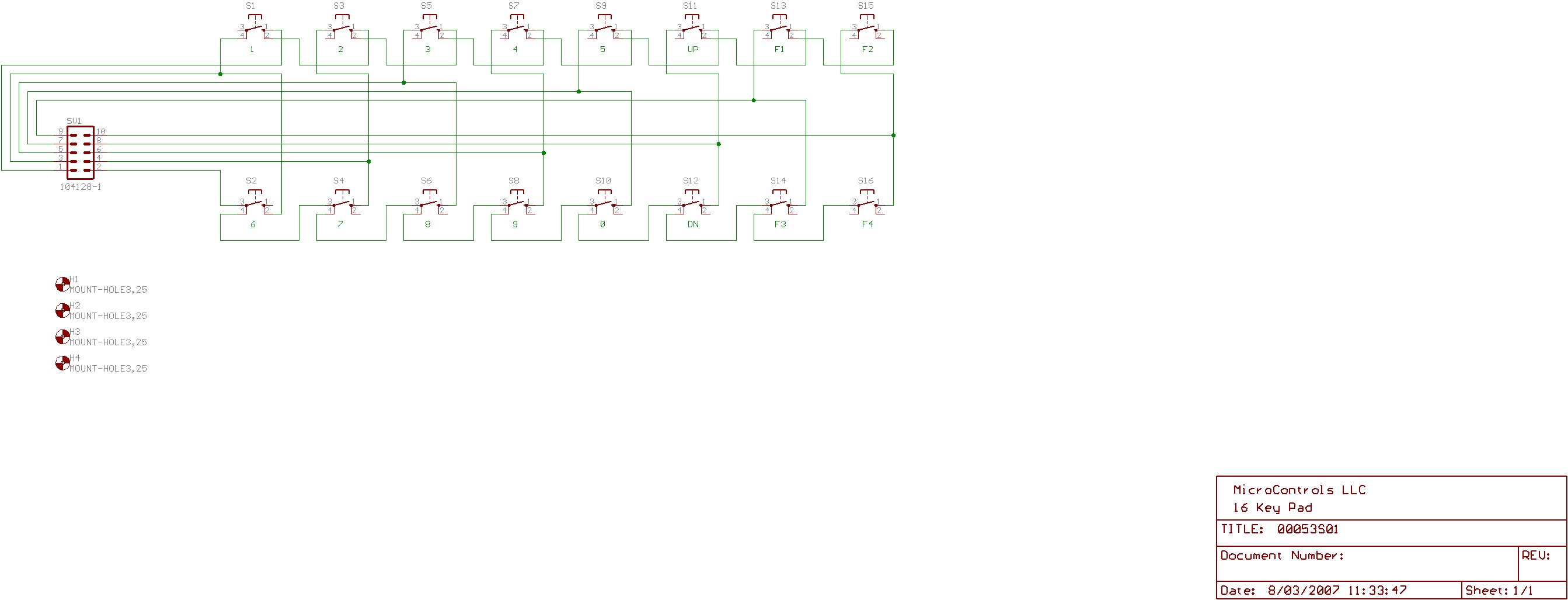

P/N: 111-00053
|

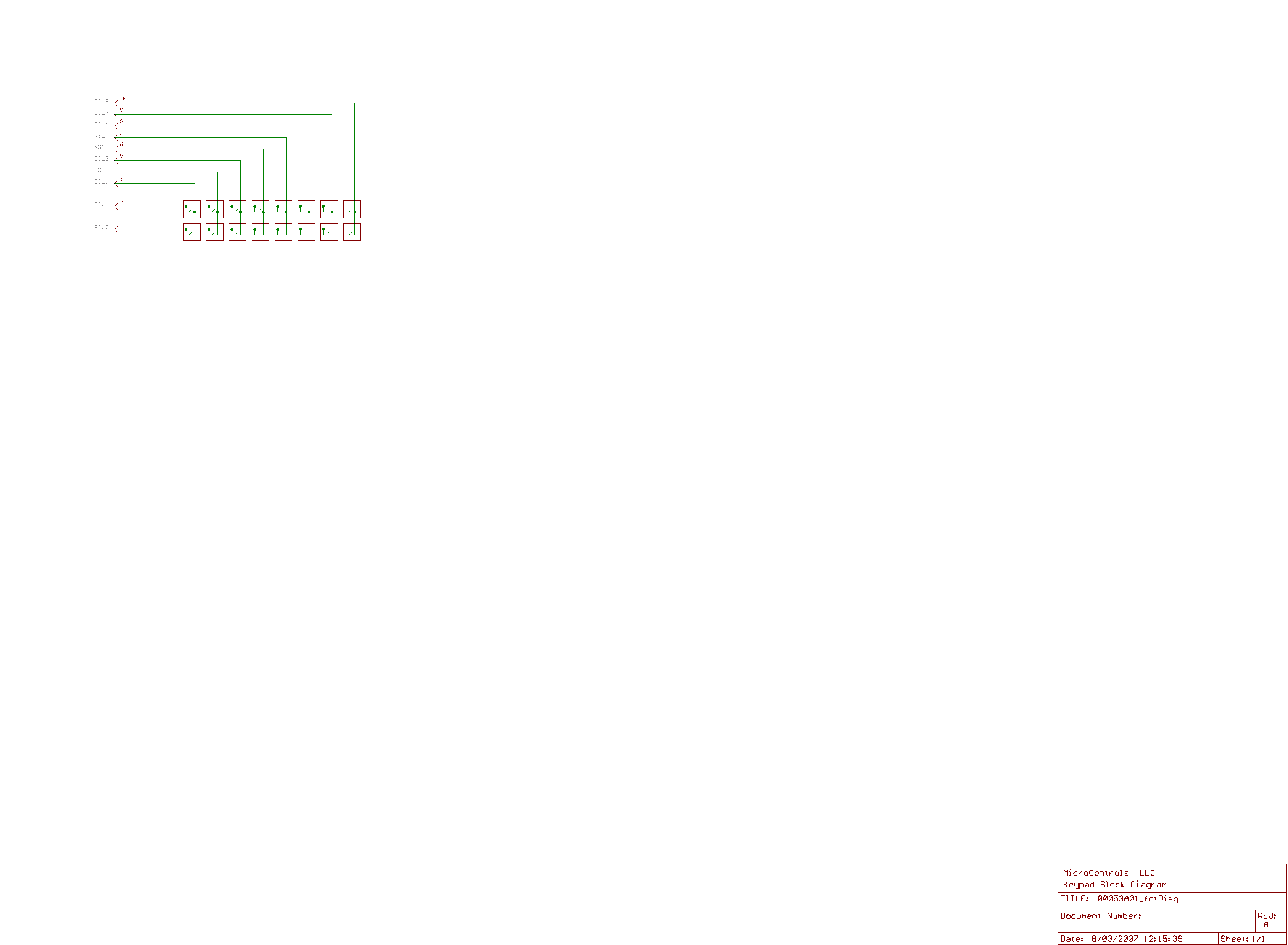

Keypad for SBC
2-row X 8-column arrangement for quick and easy decoding
Available as a kit that includes:
Cable
Echelon
Membrane
Mounting Hardware
|

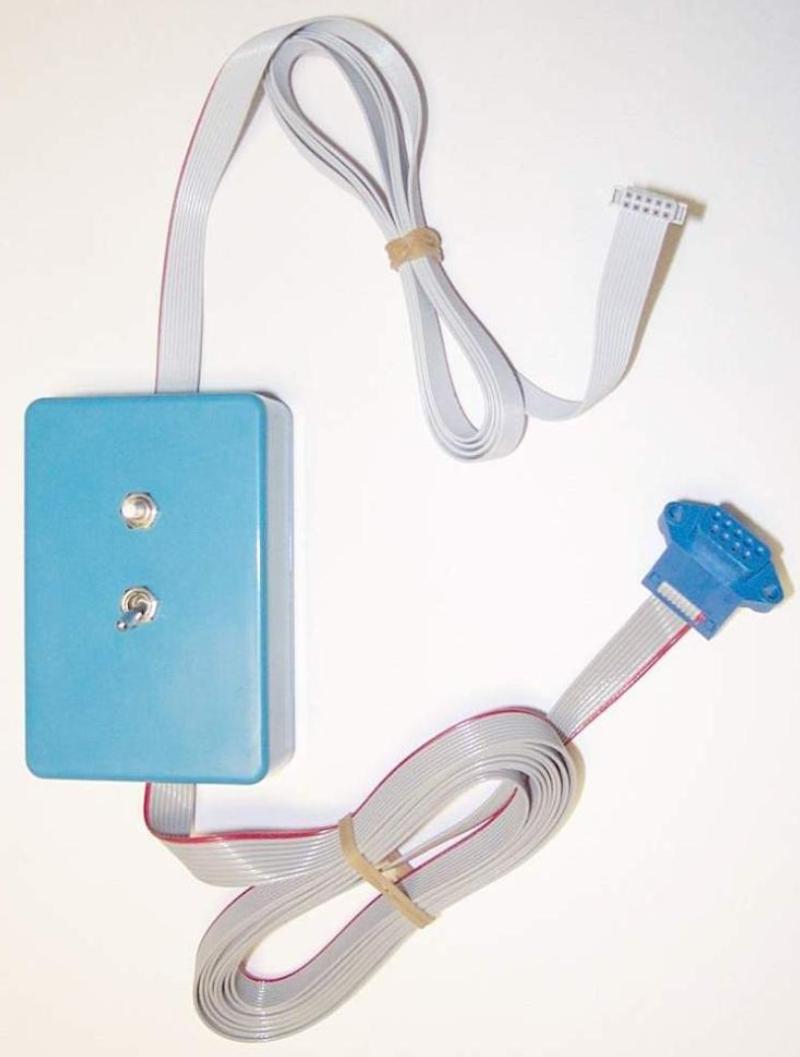

P/N: 115-00041
|

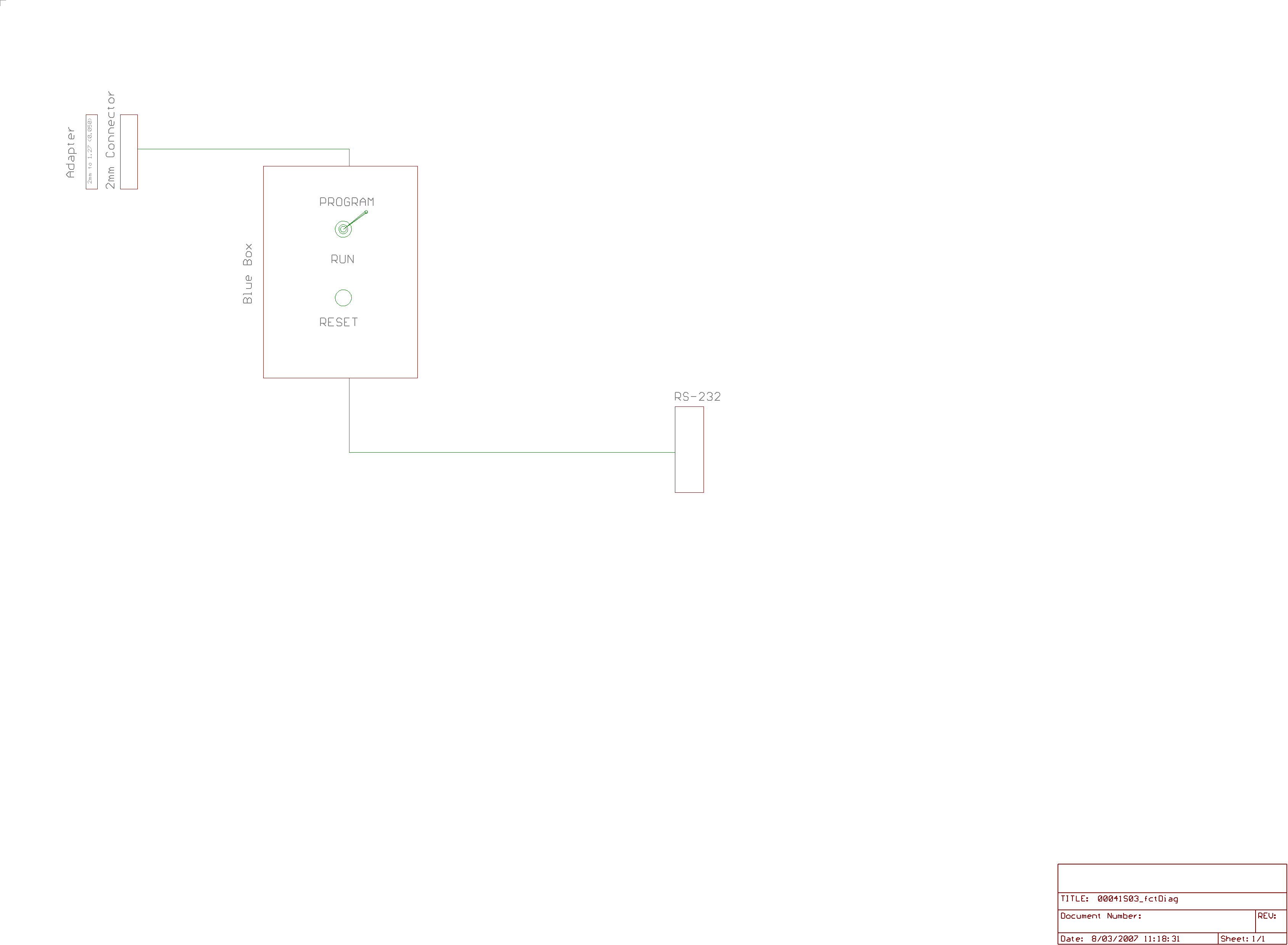

Programming Cable
Programming Cable
Run / Program Switch
Reset pushbutton
4-ft cable from box to rabbit core module
6-ft cable from box to PC
See:
115-00107 1.27 mm (0.050) to 2mm Adapter
|

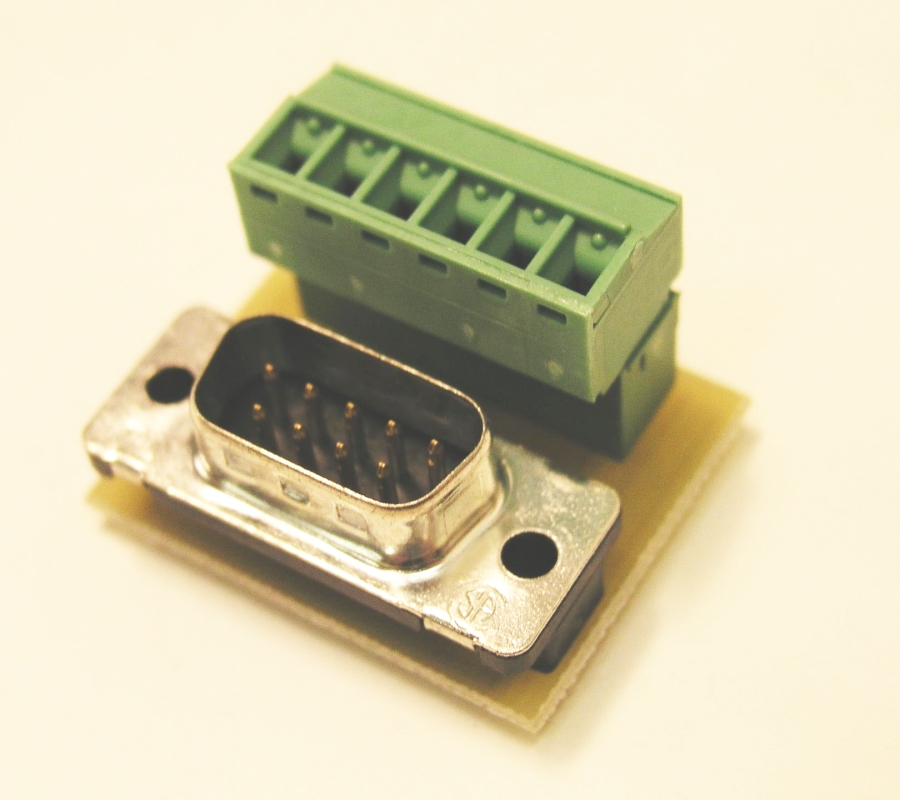

P/N: 115-00100
|
Adapter - 9 Pin D to Terminals
9 D Pins to 6-Pin Terminal Block
Available as:
-A01 9-Pin D Pin connector to TB
-A02 9-Pin D Pin connector to TB oposite side to 9 D connector
|
PN: 115-00101

|
Adapter - 9 Socket D to Terminals
9 D Sockets to 6 - Pin Terminal Block
-A01 9-Pin D Socket connector to TB
-A02 9-Pin D Socket connector to TB oposite side to 9 D connector
|

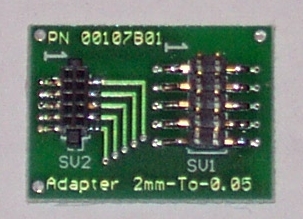

P/N: 115-00107
|
Adaptor - 1.27mm (0.050) to 2mm
Programming Cable Adapter for RCM3200 and others
1.27mm header on RCM's
to 2mm Programming Cable
|
|
